Does anyone have pictures of what the exhaust looks like on The LS?
Has it changed through the years?
Has anyone modified the existing exhaust, other than the borla or the magna flow.
Any pictures would be great.

Thanks :wrench



[itsnotmydaddys]

i posted a pic on "removing the resonators" post but heres a pic of the resonators removed



[ONEBADMK8]

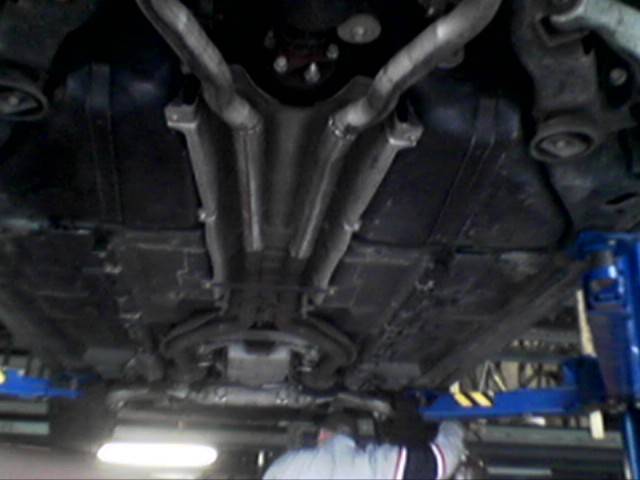

Heres our x system with our XpansionX chamber mufflers.

​



[Quik LS]

yes - the exhaust changed with the motor change in 03 - so the pre-03 is a different system than the 03+

the 03+ exhaust is pretty well tuned and they are having trouble getting any more than 5hp gain from a cat-back swap.



[Slow91z]

That's a nice system...What's it cost?
