fuel supply and return lines.

[54MarkWagon]

Does anyone have pictures and/or diagrams of the fuel supply routing for a '97 Mark VIII? The R/F wheel got shoved back into the firewall of my donor car and wadded up the fuel supply and return lines that run through there. There was also a lot of what looks like charcoal granduals in the mix too. Is there supposed to be some kind of fuel vent filter or something in that area too? If anyone has replacement parts for sale, I am interested.



[Sapperfire]

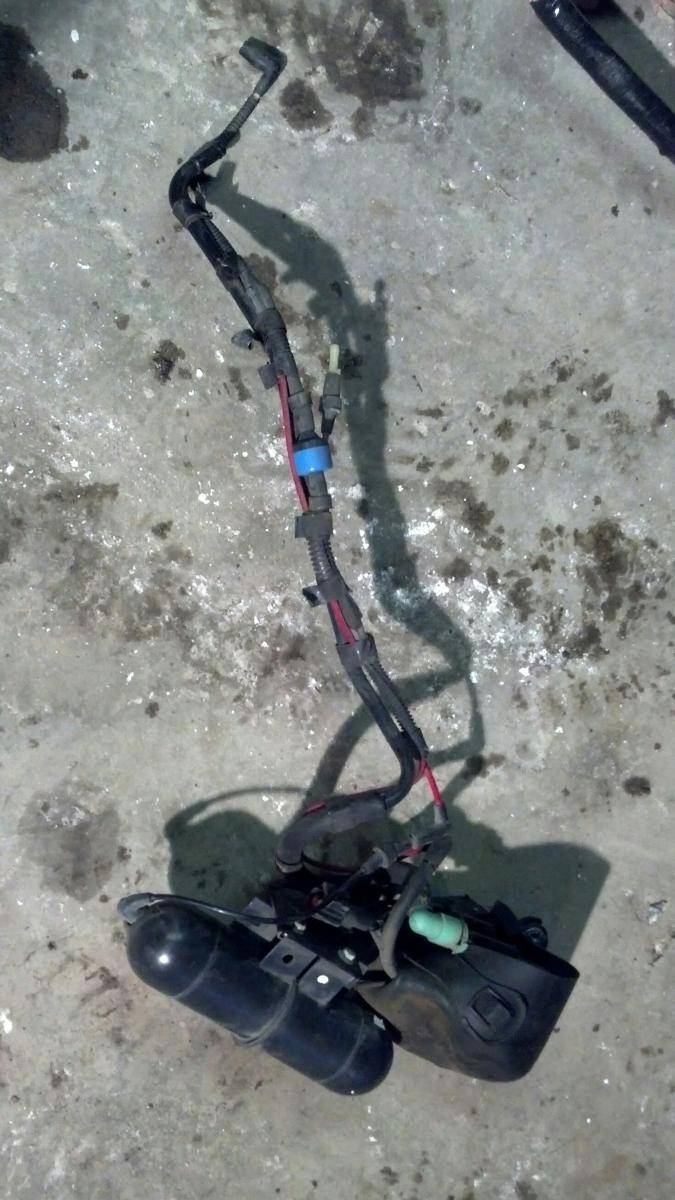

There's a vac canister that mounts to the top inner part of the fender, directly above the wheel. Never taken one apart thou



[dnsherrill]

the mixed in charcoal granules may have come from the damaged air ride system/compressor located in that area?



[slowmkviii]

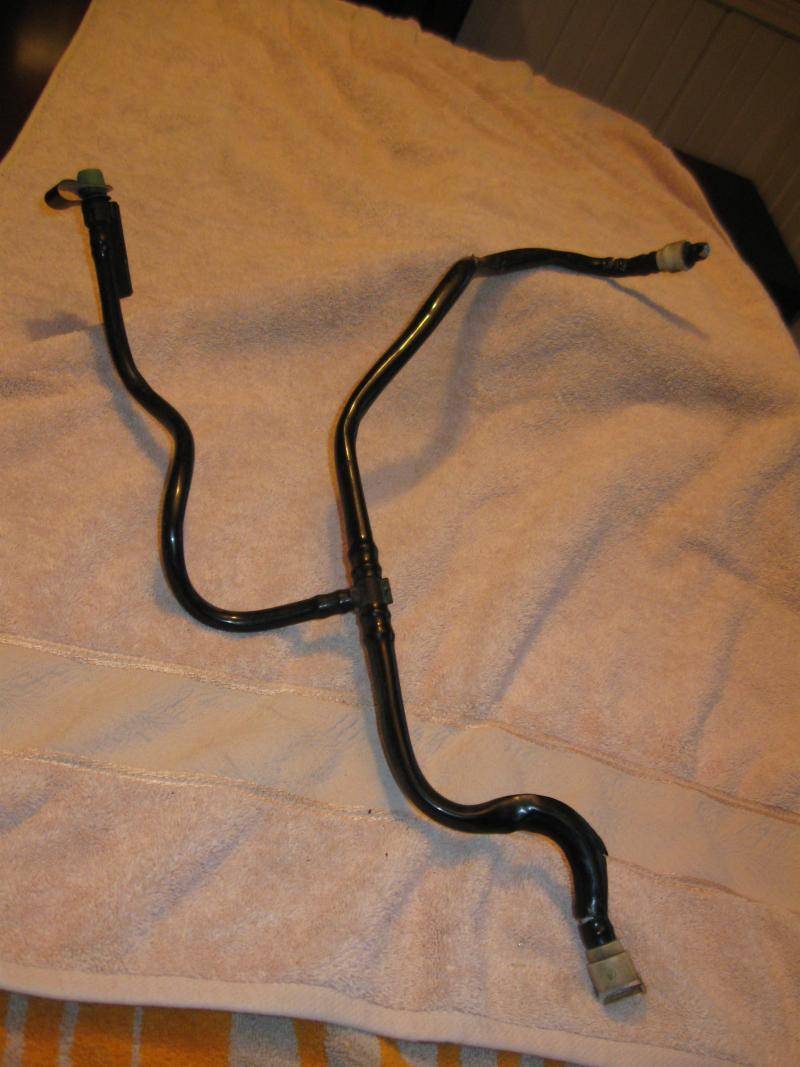

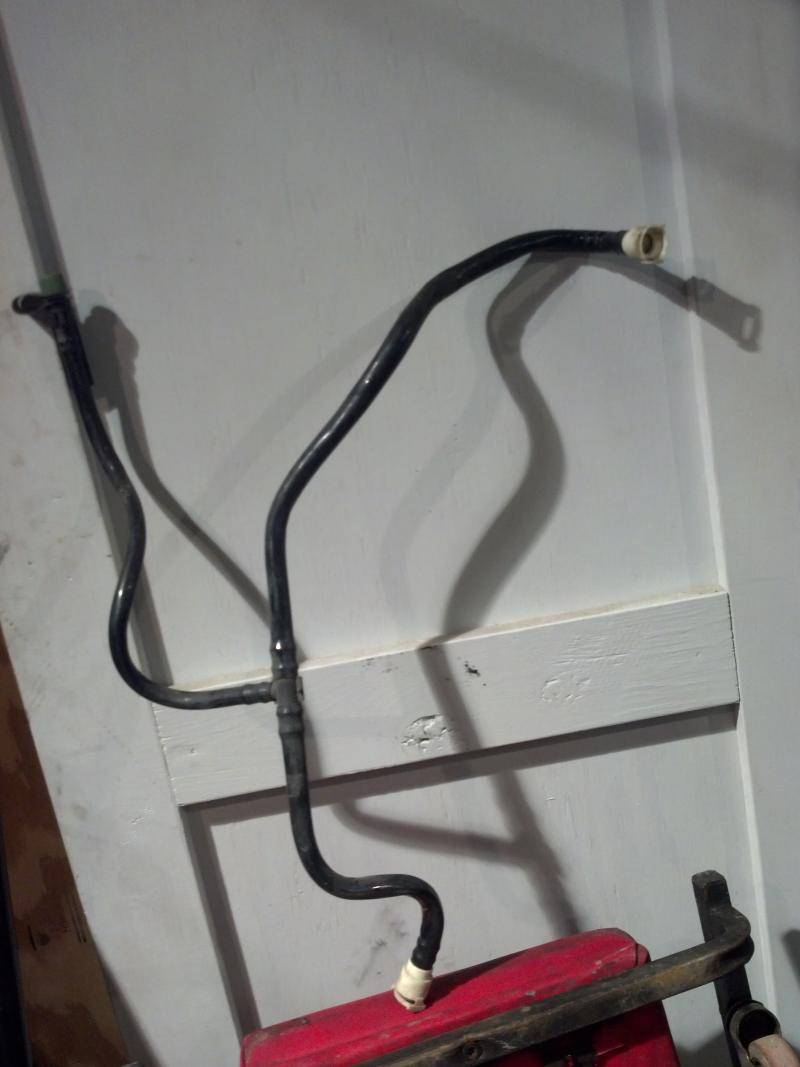

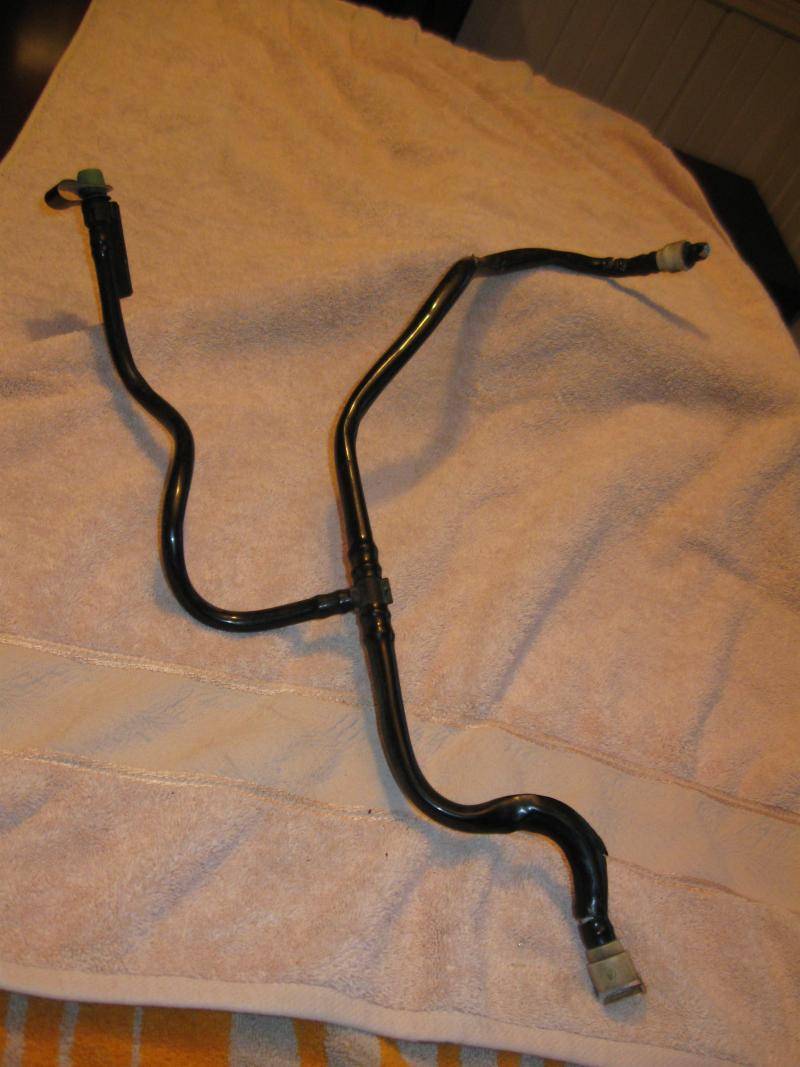

Markviiiedrea (Eric) should have sent you pics already*but if he forgot there

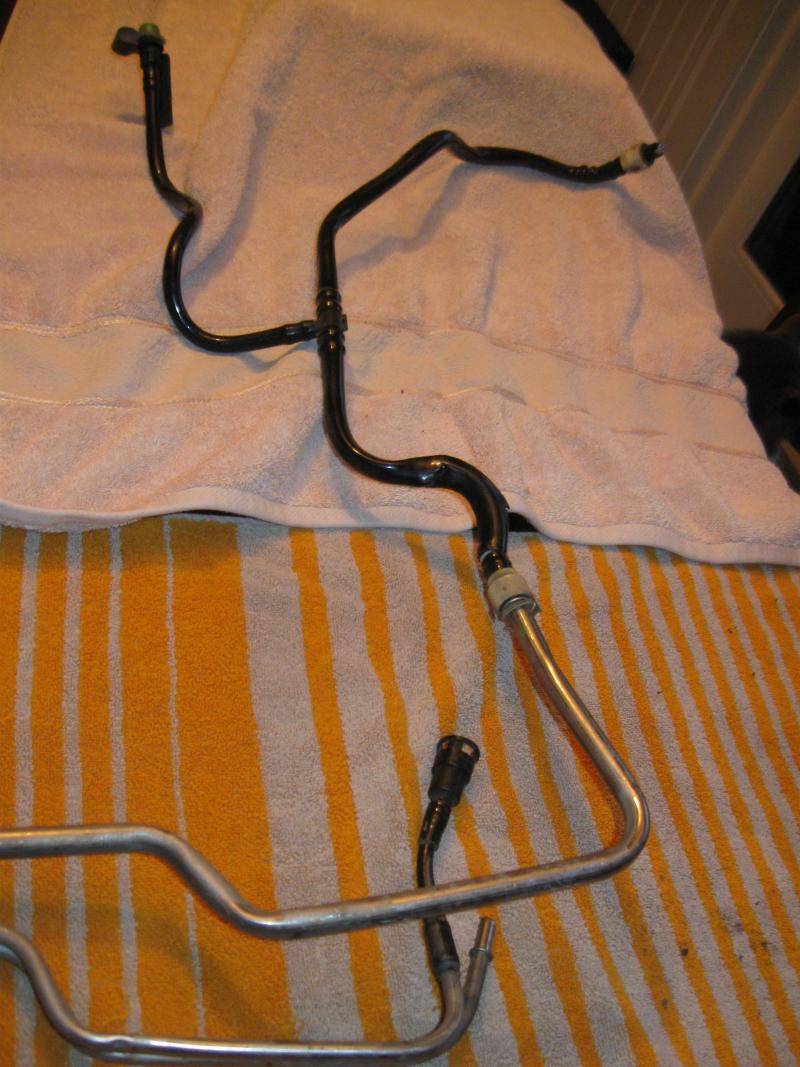

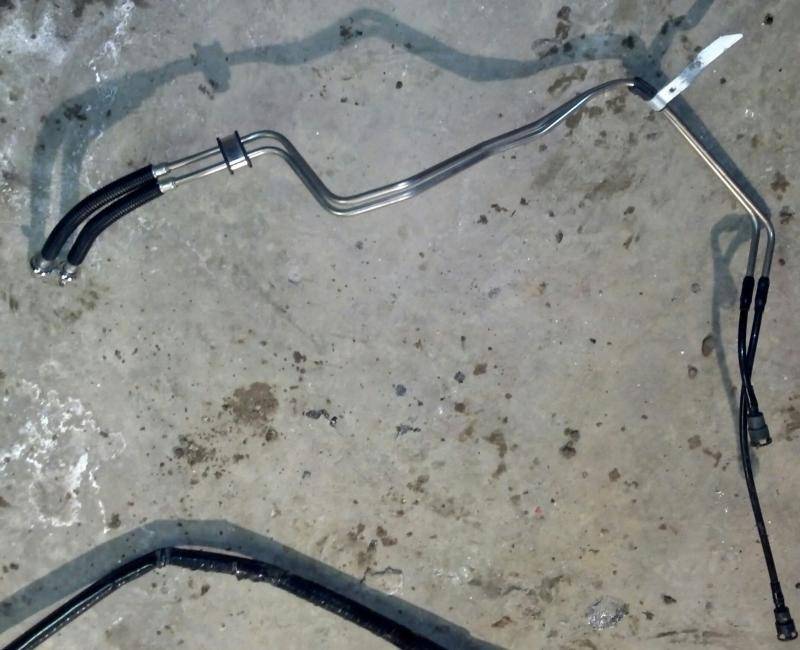

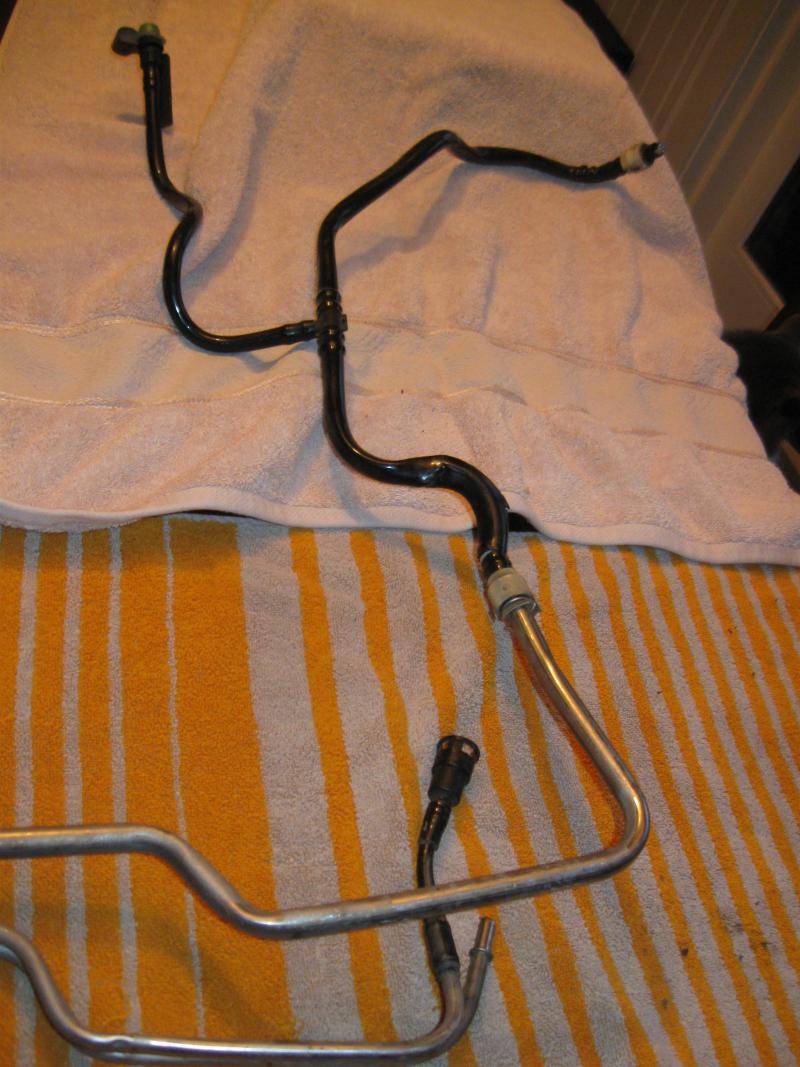

These ones



[slowmkviii]

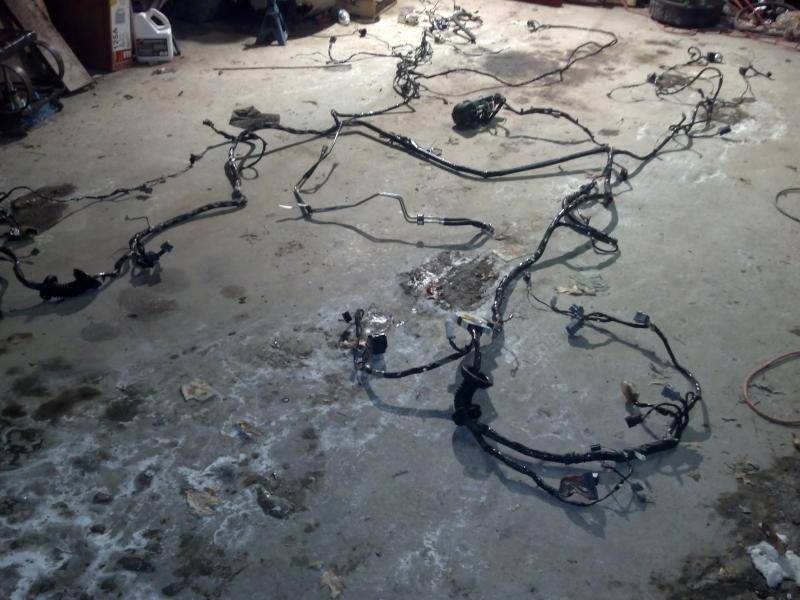

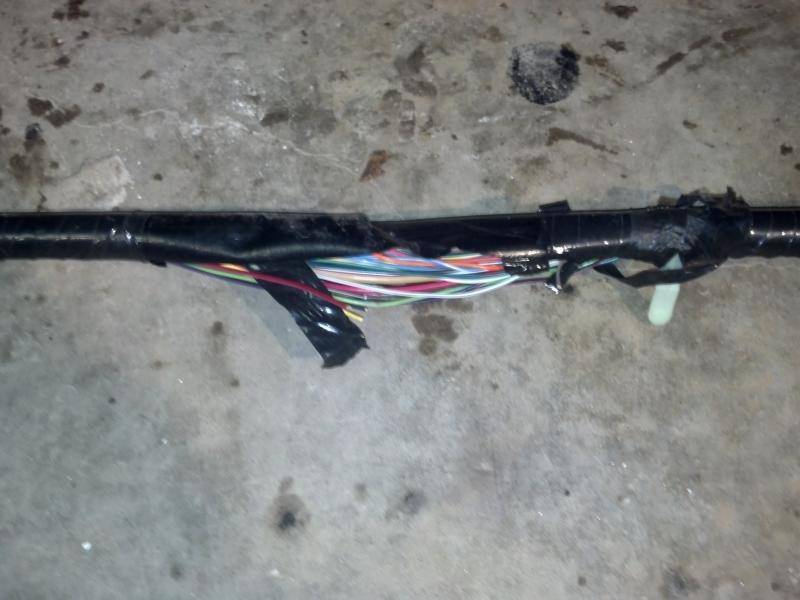

And the wire harness
With fuel pump and sender take out missing if I remember right

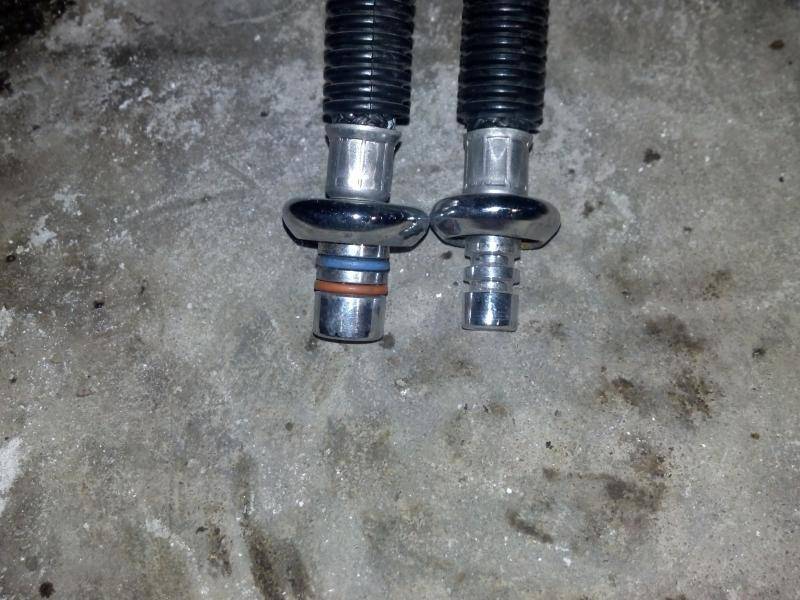

Plus two missing o-rings on one fuel line



[86markviilsc]

Charcoal could have come from the charcoal canister? Although, I don't know where it is located on the VIII....



[Markviiiedrea]

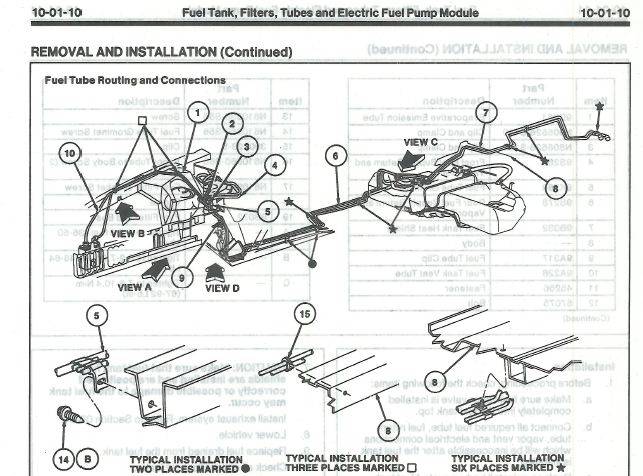

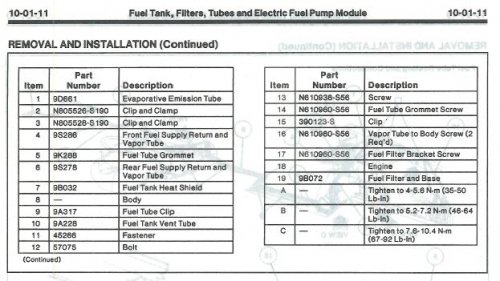

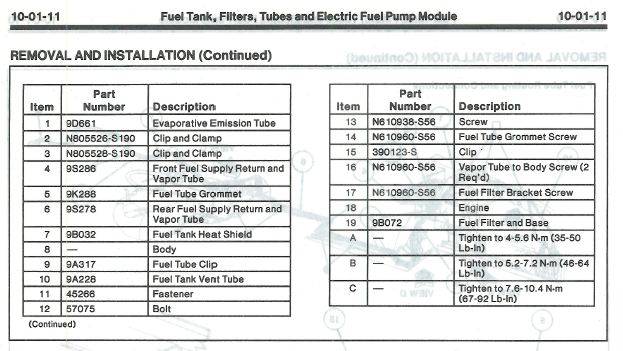

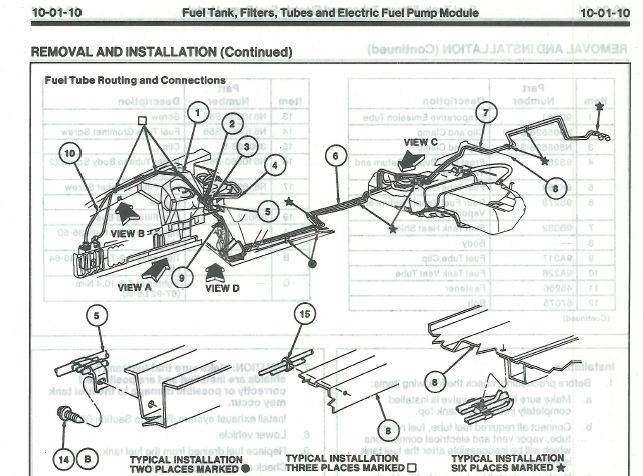

I couldn't find any diagrams of the canister itself but may this might help in some way.


*This is from a 96 Mark VIII*



[54MarkWagon]

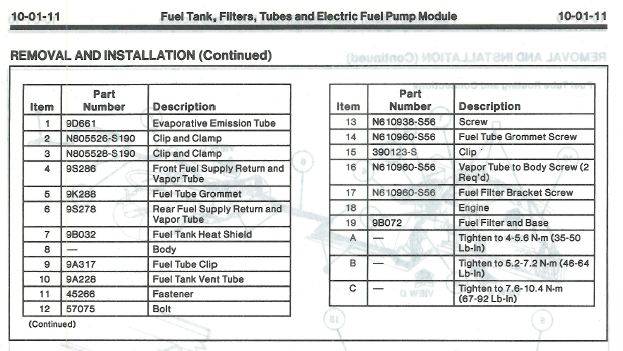

Thanks guys, you are awesome. The piece missing (at least I don't see it) is item #1; "Evaporative Emission Tube", 9D661. Otherwise it seems to be just what I need. Diagram is for '96 and on the '97 I think that the vent tube and filter go into the far back corner of the wheel well instead of the front of the frame. It attaches to the larger of the three lines running back to the fuel tank area.



[slowmkviii]

I'll have to search the garage for that.
I keep inventory in my head but that part is coming up not found in the system.
But there should be one hopefully it shows up.



[slowmkviii]

Found



[54MarkWagon]

Excelent
