Look What I Get To Do Tomorrow!!!!!!!!!

94m5

94m5

Dmaup's Daddy
Joined
Oct 22, 2004
Messages
5,259
Reaction score
85
Location
Colorado Springs, CO
Blew 2 sparkplugs out of my heads last week, and just now got the kit to fix em. 400 Bucks later, I'll be able to enjoy my 98 again.

Sometimes I question my sanity, by owning these cars.



Mike




When this 1st occured, I was gonna pull the heads off, and do (what I thought ) was the right thing, and helicoil them off of the car. I went so far as to order a set of cam holding tools from OTC.

I got online the night after I got the tools ordered, and found this kit. It's gonna allow me to fix all 8 holes PERMENATLY, and not remove the heads. I figure it's gonna save me the cost of the head gaskets, head bolts, and my labor to do it.

so now, I have a brand new set of cam tools sitting in my tool box collecting dust.


Yay

that sucks man.. ive been there.. my blown plug cost me a whole motor..

let us know how the Timesert kit works for you.

So give me a heads up......................

94m5 said:
When this 1st occured, I was gonna pull the heads off, and do (what I thought ) was the right thing, and helicoil them off of the car. I went so far as to order a set of cam holding tools from OTC.

I got online the night after I got the tools ordered, and found this kit. It's gonna allow me to fix all 8 holes PERMENATLY, and not remove the heads. I figure it's gonna save me the cost of the head gaskets, head bolts, and my labor to do it.

so now, I have a brand new set of cam tools sitting in my tool box collecting dust.


Yay
Click to expand...

Is this a common problem with all marks, or just certain years. This is the first time I have heard of this issue.

It's only common if a previous plug change was done wrong. The threads are REALLY easy to strip out if over torqued. Which is what happend with this. I have NEVER seen them this bad tho.


Mike

Thanks for the info.......................

94m5 said:
It's only common if a previous plug change was done wrong. The threads are REALLY easy to strip out if over torqued. Which is what happend with this. I have NEVER seen them this bad tho.


Mike
Click to expand...

I use a small T-Handel plug tool to prevent that sort of thing. Something I learned long ago putting plugs in Hemi's.

94m5 said:
so now, I have a brand new set of cam tools sitting in my tool box collecting dust.


Yay
Click to expand...
thats how it goes once you buy a special tool you will never need it again i got so mant tools that i bought that ive never used it sux but if its a crappy job and you dont want to ever do it again just buy the speciallty tool and you will never need it

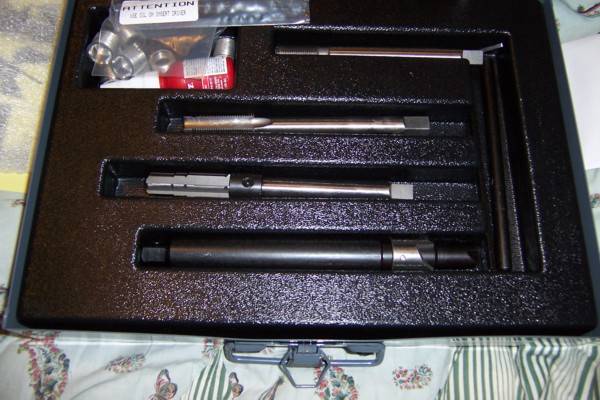

Was it $400 for just what's in the pic? :eek: or for everything you do, and don't need now... :rolleyes: LOL

That sucks, but atleast it looks like you outsmarted the damned 4.6 DOHC...

94m5 said:
It's only common if a previous plug change was done wrong. The threads are REALLY easy to strip out if over torqued. Which is what happend with this. I have NEVER seen them this bad tho.


Mike
Click to expand...
Are you trying to tell us you weren't the one who put the plugs in the last time? :eek: :shifty: ;)

mespock said:
You know I thought I read something about him in another forum talking about his car and that he had someone buying it.
Click to expand...
I remember seeing that also Rich.

MonsterMark said:
Are you trying to tell us you weren't the one who put the plugs in the last time? :eek: :shifty: ;)
Click to expand...


That is correct.


Alot of the problems that he was complaining about with this car were self inflicted. You should have seen the rats nest of a wiring harness I pulled out from under the drivers side of the dash.


I have come to the conclusion......the reason the car was eating coils was because the plugs were so loose in thier bores, it was allowing combustion pressure past it, and cooking the coils.


I'll find out tho. All 8 plugs have been repaired, and should NEVER leak (or pop out) again. I took it out for a spin after work, and fell in love all over again.

Now it's back to work on the 95'


Mike

PioneerCrazed said:
Was it $400 for just what's in the pic? :eek: or for everything you do, and don't need now... :rolleyes: LOL

That sucks, but atleast it looks like you outsmarted the damned 4.6 DOHC...
Click to expand...



Yes...400 for what is in the picture only. The cam holding tools were 225. I figure with my 3 VIIIs and my buddy buying stradogs car, I'll need every specialty tool for the modular engine I can get.


EDIT......

If ANY of you come across the need for any of my tools, I would be more than happy to loan them out...(with a deposit of course). Since I have this tool, all you would have to do is...order the inserts to go with it, and you could be all fixed up for next to nothing.

I'm gonna be buying more modular specific tools soon, and i'll make a list of what I have and post it.


Mike

Mike

94m5 said:
That is correct.


Alot of the problems that he was complaining about with this car were self inflicted. You should have seen the rats nest of a wiring harness I pulled out from under the drivers side of the dash.


I have come to the conclusion......the reason the car was eating coils was because the plugs were so loose in thier bores, it was allowing combustion pressure past it, and cooking the coils.


I'll find out tho. All 8 plugs have been repaired, and should NEVER leak (or pop out) again. I took it out for a spin after work, and fell in love all over again.

Now it's back to work on the 95'


Mike
Click to expand...
Good to hear that you got it fixed, good job Mike :cool:

Got a few things done actually,

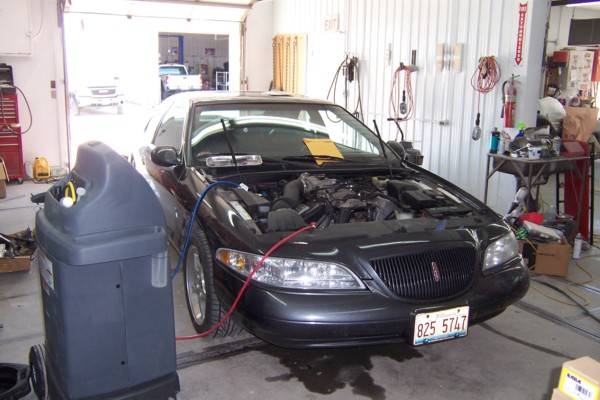

Oil change, ac system repaired, and charged, and the obvious sparkplug holes. I really wish I had more time to do stuff to it, but the 95 is getting everything I have at the momnet. The 98' will have to keep it's day to day role for a while.


Mike

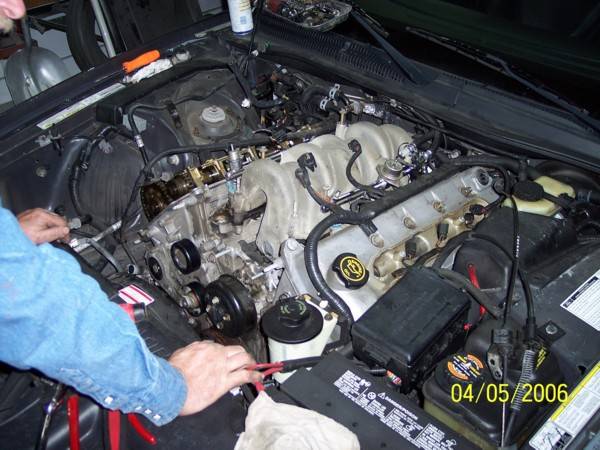

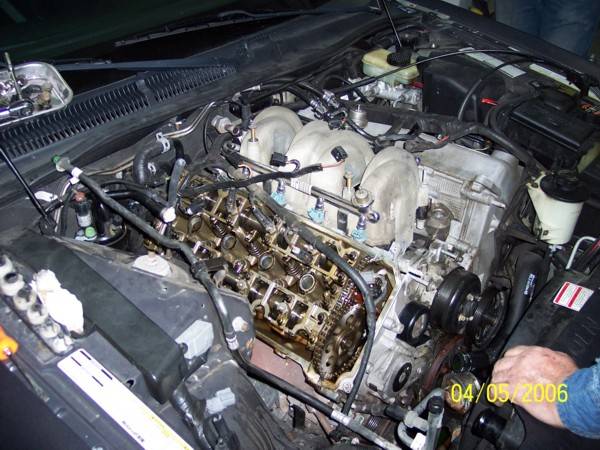

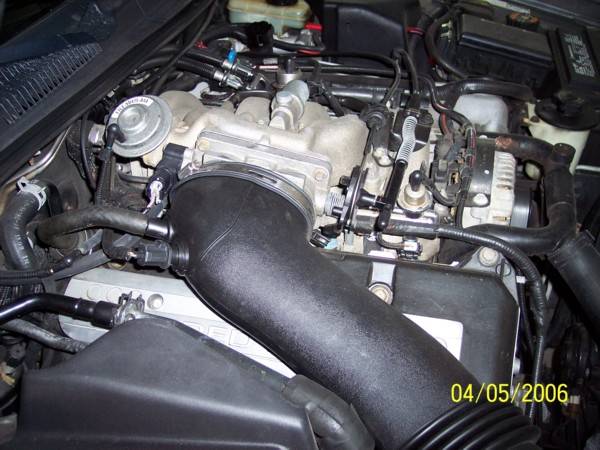

EDIT...PICS












Last edited:
My 93 did the same thing. the crown vics with the police package are really bad about blowing plugs out of the heads. cost me $300 too have mine fixed.

Blew #6 out on the road today. The car is sitting in a Blockbuster parking lot am I have 2 more sales calls today so it'll be there till later tonight till I can go get it with our trailer. I may need to borrow those tools if you were serious.

Not a problem on that man.



When your ready for it, PM me your adress, and I'll ship it out. All I ask is that you pay the shipping there, and back.


I have 7 extra inserts sitting in the case, so you don't have to worry about buying those.


Let me know when you need it.


Mike

Thats really cool man, I don't exactly have to tackle it right away as I just switched back to driving the LSE daily no big deal. But I don't exactly like it sitting immobile in the garage either. I'll let you know. Anything besides valve cover gaskets I should be doing while in there? Got to think about that. You know when I did the spark plugs back when I bought it, I remember them all being super stupid tight and thinking WTF. Just a matter of time. Trailered it home just a little while ago. First time she left me hanging, damn shame, but such is life.
