What did you do to your Mark VIII today?

:lol: push those buttons!


sbcaprice305 said:
Yes really. They're the kind that have a shock at both ends iirc. Pretty cool setup.
Click to expand...

You may be thinking of the older Broncos. This is the first gen Explorer with the twin-Traction-beam setup with coils on top of the I-beams and shocks mounted to the radius arm behind the I-beam and a radius arm connecting the I-beam to the chassis. Coils and shocks up front and coils and leafs out back. :)



chris2523 said:
our F250 HD has leaf springs at all four corners.
Click to expand...

Super Duty with a straight axle in front? I've seen those. Some of the Excursions had that too. Those are seriously heavy duty. I think only the 4x4 Super Duty chassis had solid axle front suspension with leafs. The 2WD models still use the good ol' Twin-I-Beam.

thaywood said:
You may be thinking of the older Broncos. This is the first gen Explorer with the twin-I-beam setup with coils on top of the I-beams and shocks mounted behind the I-beam and a radius arm connecting the I-beam to the chassis. Coils and shocks up front and coils and leafs out back. :)

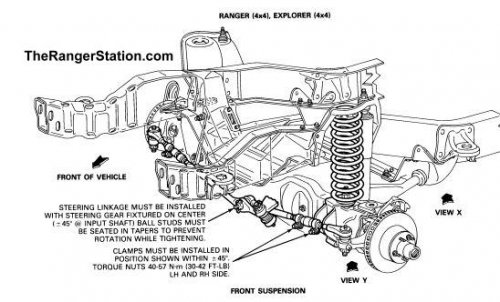

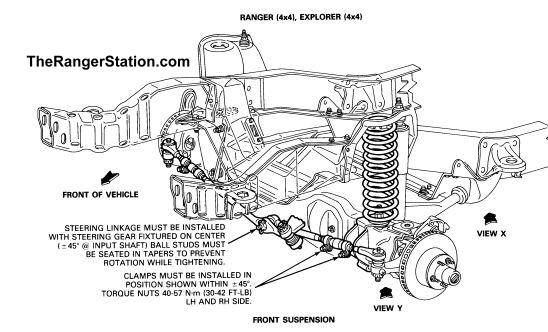

View attachment 828455692
Click to expand...

You can clearly see what i'm talking about in the picture. From what i've heard it road pretty well though.

thaywood said:
I'm not entirely sure I know what you're talking about but it does ride fairly well. Still rides like a truck, but a good riding truck.
Click to expand...

See where the two rods enter the shaft? Look to the right next to the frame. On the other side you can clearly see it if you follow the linkage from the center reamer rod in the illustration.

Last edited:
thaywood said:
Super Duty with a straight axle in front? I've seen those. Some of the Excursions had that too. Those are seriously heavy duty. I think only the 4x4 Super Duty chassis had solid axle front suspension with leafs. The 2WD models still use the good ol' Twin-I-Beam.
Click to expand...

yep. 7.3, 4x4 with the solid front axle. it is just short of a full 1 ton in the load ratings.
pretty sure the non diesel had a similar setup, but with fewer front leafs because of the reduced engine weight.

sbcaprice305 said:
I'm sorry, those have leaf springs on all four corners don't they?
Click to expand...

The Explorer's Twin-Traction-Beam has coil springs, not leaf springs.

sbcaprice305 said:
Yes really. They're the kind that have a shock at both ends iirc. Pretty cool setup.
Click to expand...

I don't quite get this statment. There is a shock at all four corners of the vehicle. Two in front and two in the rear. I may be having a brain fart but I have no idea what you're talking about.

sbcaprice305 said:
You can clearly see what i'm talking about in the picture. From what i've heard it road pretty well though.
Click to expand...

I really can't see what you're talking about. I need a little bit more info. Again, maybe a brain fart. :)

sbcaprice305 said:
See where the two rods enter the shaft? Look to the right next to the frame. On the other side you can clearly see it if you follow the linkage from the center reamer rod in the illistration.
Click to expand...

Are you talking about the radius arms that connect the two I-beams to the chassis?

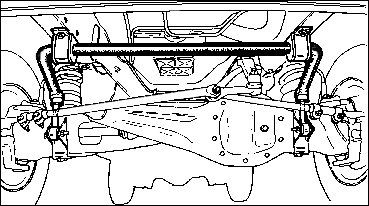

Here's a good view of the front of the Twin-Traction-Beam IFS.
exploder ifs 2.gif

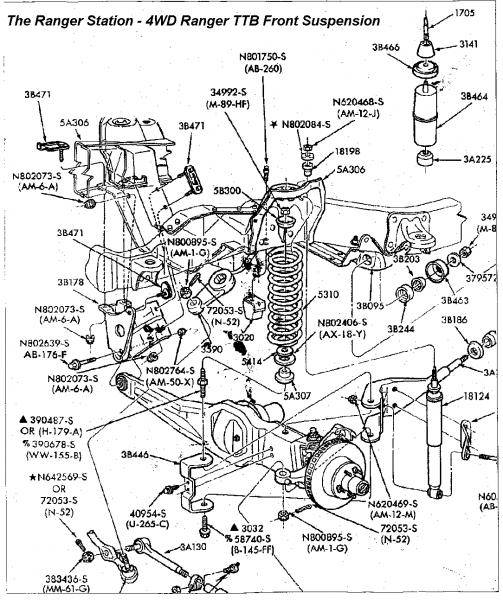

And here's an exploded veiw:
exploder ifs exploded.jpg

There are no leaf springs. And there is a shock absorber mounted to the radius arm just behind the coil spring. The coil sits right on top of the I-beam on each side.

Oh yeah, I forgot, the 2WD models were called "Twin-I-Beam" while the 4x4 models got the name "Twin-Traction-Beam".

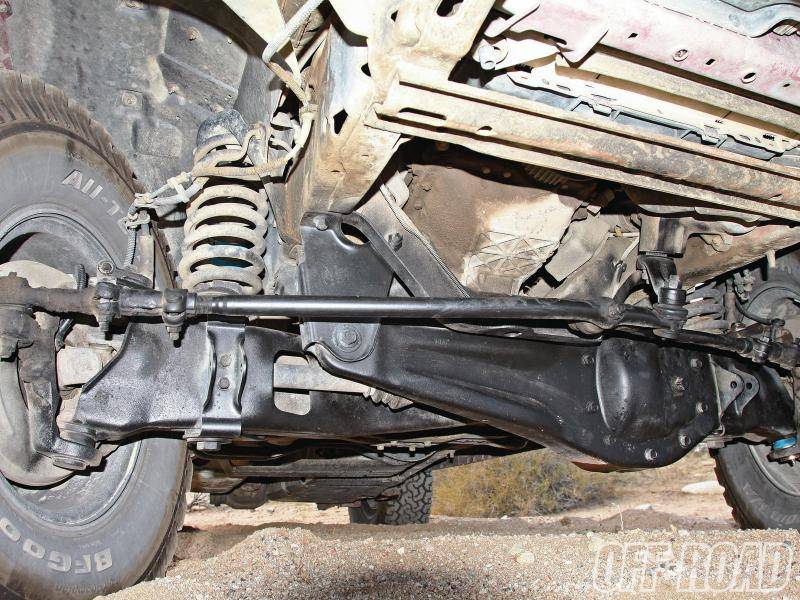

And just for the heck of it, here's another photo of a Gen1 Exploder TTB.

exploder ifs.jpg
Of course mine doesn't look this good and it's not nearly this clean :D

AH!!! I think I just got it! Are you talking about torsion bars???? If so, the Exploders didn't get them until 1995 when they went to the fully independent SLA front suspension and CV axles for the 4x4 models.

exploder ifs 2.gif


exploder ifs exploded.jpg


exploder ifs.jpg

thaywood said:
The Explorer's Twin-Traction-Beam has coil springs, not leaf springs.



I don't quite get this statment. There is a shock at all four corners of the vehicle. Two in front and two in the rear. I may be having a brain fart but I have no idea what you're talking about.



I really can't see what you're talking about. I need a little bit more info. Again, maybe a brain fart. :)



Are you talking about the radius arms that connect the two I-beams to the chassis?

Here's a good view of the front of the Twin-Traction-Beam IFS.
View attachment 828455693

And here's an exploded veiw:
View attachment 828455694

There are no leaf springs. And there is a shock absorber mounted to the radius arm just behind the coil spring. The coil sits right on top of the I-beam on each side.

Oh yeah, I forgot, the 2WD models were called "Twin-I-Beam" while the 4x4 models got the name "Twin-Traction-Beam".
Click to expand...


windows 7 screen shot

Yep. Missed that. I guess I just got *owned*

Oh well. Manure occurreth...:rolleyes:

But at least everybody got a whole bunch of useful information about the Ford Twin-Traction-Beam 4x4 front suspension and how it DOES NOT HAVE STRUTS :p Too bad this ain't an Explorer forum...

Parked it about a month ago while I was gathering my front end part's together. Jacked it up today with the air ride switch off to get nut and bolt sizes. When I lowered it, I started it up cause it sit's a little high after jacking and my air compressor isn't kicking on and it isn't venting either WTF! No air ride message either.
Is there a simple test I can perform or maybe I should take it for a little ride? I'm getting ready to do LCA's and SRB's. I need to let the air out of the front springs to do that. I'd hate to do all that work and then it not air back up. Front air spring's and compressor/drier can't be more the 5 years old with only 20K maybe on them. Dam if it ain't one thing it's a dozen other's! I love this car but I'm beginning to wounder if she love's me back :)

Removed my front seats, cleaned and conditioned them. Then steam cleaned my carpet. Let it dry in the sun (it was 91 today) then reinstalled the seats. Filled it up and put it back in the garage. I love sick days!

Spree said:
...I'm getting ready to do LCA's and SRB's. I need to let the air out of the front springs to do that...
Click to expand...

Not necessarily. I didn't deflate my front air springs when I replaced my LCA's and SRB's. You're going to have to put the LCA on a jack stand and let the weight of the car sit on it to get the lower ball joint nut on anyway so there's really no reason to deflate the springs. As far as your compressor and vents, I'd say take it for a drive and see what happens. :)

Spree said:
Parked it about a month ago while I was gathering my front end part's together. Jacked it up today with the air ride switch off to get nut and bolt sizes. When I lowered it, I started it up cause it sit's a little high after jacking and my air compressor isn't kicking on and it isn't venting either WTF! No air ride message either.
Is there a simple test I can perform or maybe I should take it for a little ride? I'm getting ready to do LCA's and SRB's. I need to let the air out of the front springs to do that. I'd hate to do all that work and then it not air back up. Front air spring's and compressor/drier can't be more the 5 years old with only 20K maybe on them. Dam if it ain't one thing it's a dozen other's! I love this car but I'm beginning to wounder if she love's me back :)
Click to expand...

you shut the door right? the suspension won't move with the door open.
